SR-71 Executive Handbook

The SR-71 Reconnaissance System Executive Handbook was written by Bill Majors (Lockheed ADP) and produced by Lockheed Martin Skunk Works Corporation. The Handbook was distributed to members of Congress, The President of the United States and other Dignitaries to familiarize them with the Blackbird Capabilities. The information provided is not classified information. All images belong to Lockheed Martin except as noted.
Page #2 of 2 Pages

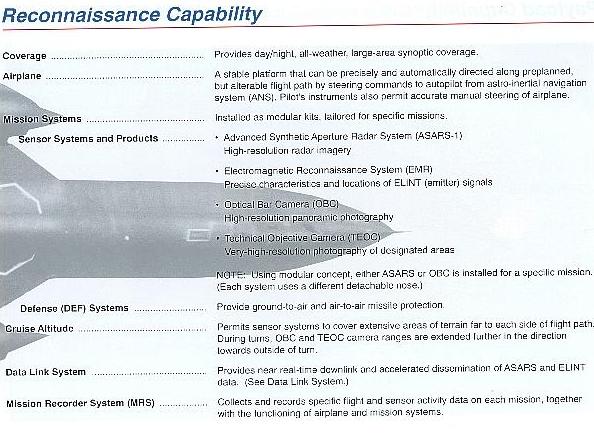

Reconnaissance Capability

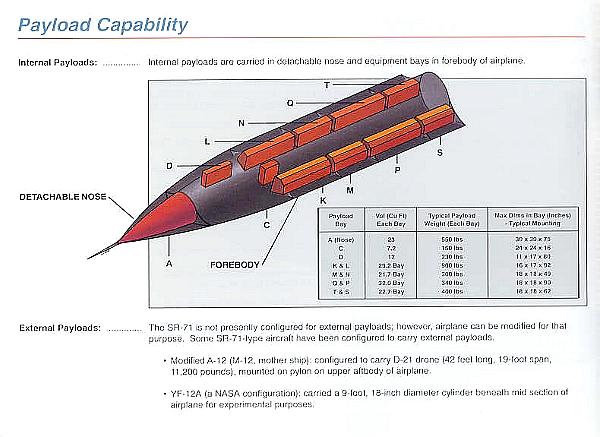

Payload Capability

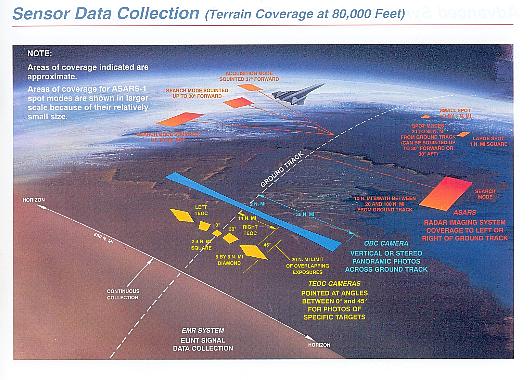

Sensor Data Collection

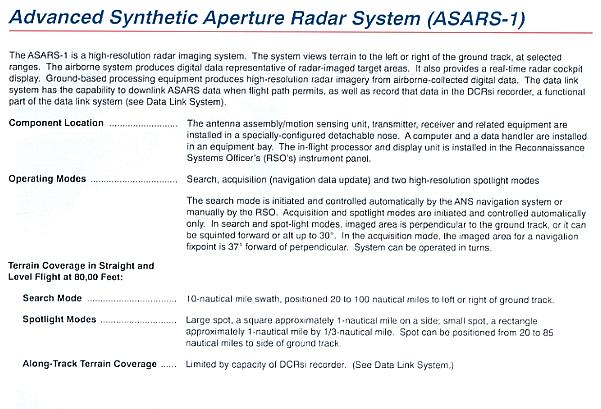

Synthetic Radar ASARS-1

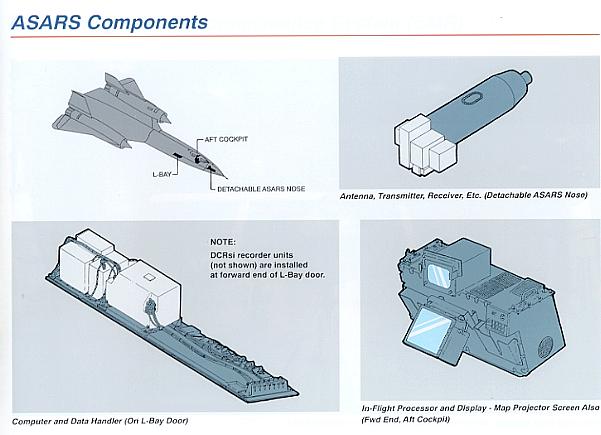

ASARS Components
Returning from Mission

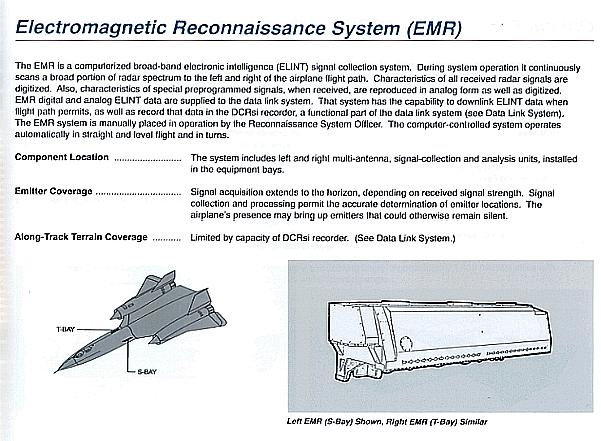

EMR System

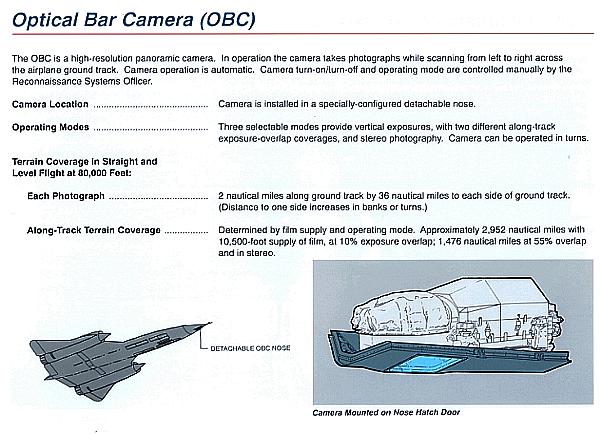

OBC Camera
TEOC Camera

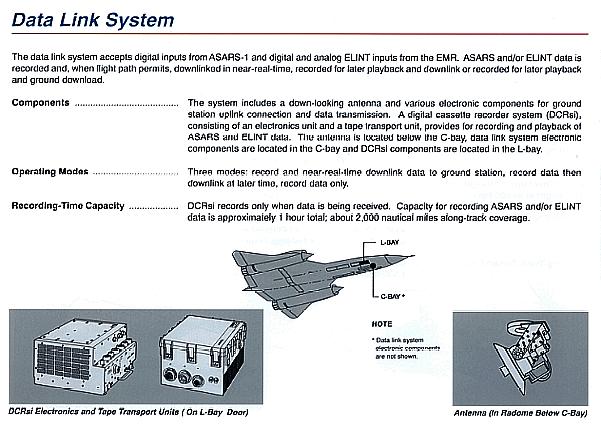

Data Link System

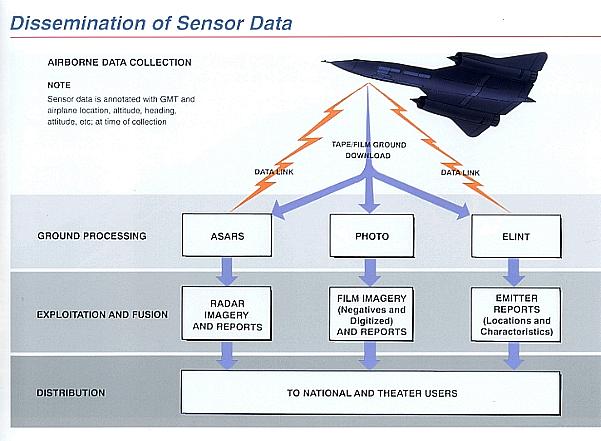

Sensor Data
Mission Completed

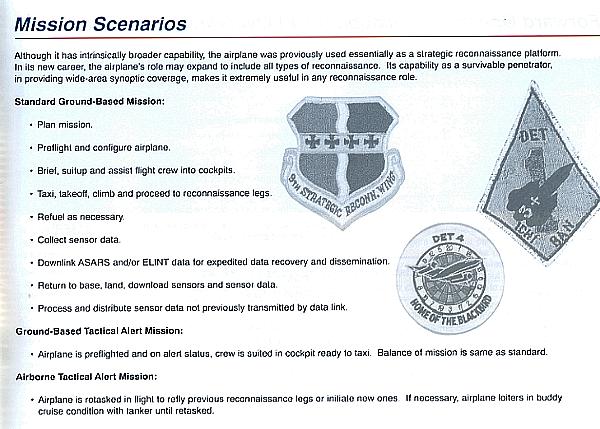

Mission Scenarios

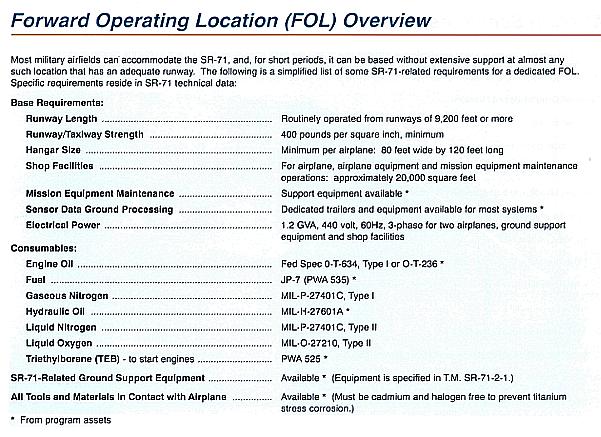

FOL Overview

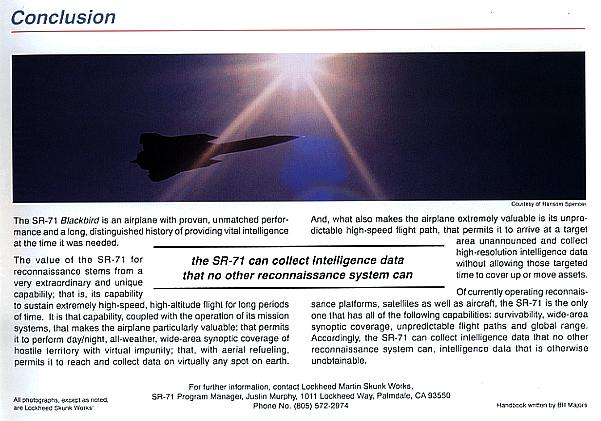

Conclusion
